What is Fastners?

The term “fastener” refers to bolts, nails, screws, magnets and other kinds of connecting devices ratchet straps for Fasteners Manufacturer. Knowing the correct fastener types to use will help your project run more smoothly.A Fastener. Fasteners though not visualized by us directly or even thought of, play a vital role in our day to day life. Be it from, holding the chairs and tables we sit on; be it the automobiles we travel; every inch of what we use is held in place by means of a for Fasteners Manufacturer.

What are Fastners Used For?

We mainly use a fastener for a non-permanent joint. What do we mean by a non-permanent joint? A joint that can be removed or dismantled without the destruction or damage of the joining components can be termed as a non-permanent joint for Fasteners Manufacturer. A welding joint or riveted joint can be termed as a permanent joint, which if required to be removed tends to damage or destruct both the joining components as well as the joint itself.

Materials for Fastners

The Most Common Types of Fasteners

Mechanical fasteners come in different types. Each of those types also has many subtypes that you can choose from. Among the different types of fasteners, here are the most common ones:

Bolts

These types of fasteners help to hold two unthreaded parts together. They can be called the most common types of fasteners.

Screws

Screws are versatile fasteners with durable holding power. They have a similar structure to bolts. However, they do not need anything to keep them in place, unlike bolts.

Nuts

A nut comes with an internal thread that works with a bolt to hold components together.

Washers

They are small, circular discs shaped like an annulus. They also work together with nuts and bolts and serve important fastening functions.

Rivets

These are permanent fasteners that help secure several different types of components.

Specialty Fastners

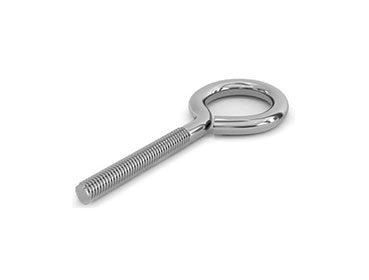

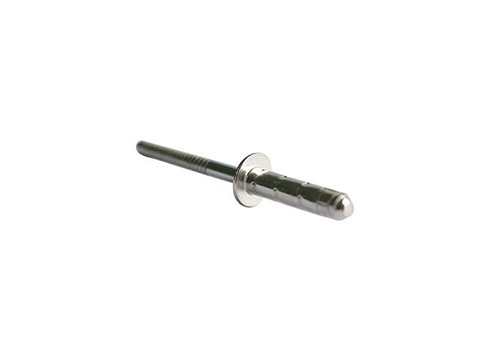

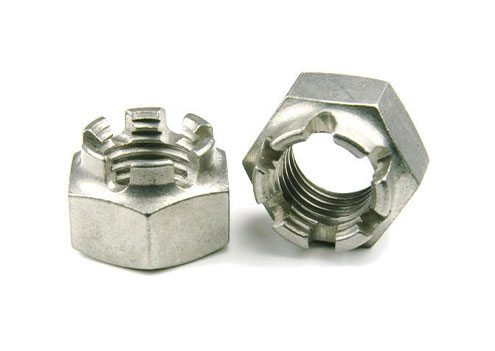

The fastner types listed above are the most common for Fasteners Manufacturer. However, there is a range of additional specialized flange types available to suit a range of uses and environments. Other options include Castle nuts,Eye Bolt,Cap nuts,Large-flange rivets,Multi-Grip rivets,Spring Washer,Lead washer.

Fasteners Materials & Grades

Fasteners	Specifications
Fasteners Types	Bolt, Nut, Screw, Washers, Rings
Application	Fasteners can be used in racing industries such as racing motorcycles and cars, sailing boats and medical equipment, etc.
Size	M5-M50
Grades
Stainless Steel	ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Super Duplex Steel	S32750
Duplex Steel	ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Carbon Steel	ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91
Alloys Steel	ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.
Nickel Alloys	Nickel Alloys 200, Nickel Alloys 201
Titanium	Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI
Inconel	Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L
Hastelloy	Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G
Molybdenum	ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum
Cobalt	Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21
Niobium	ASTM B394, R04200 R04210
Nimonic	Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc
Tungsten	W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten
Nichrome	Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc
Magnesium	Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc.
Tantalum	Tantalum – Grade 1.
Monel	Monel 400, Monel k500
MU-METAL	MU-METAL
Zirconium	Zirconium 702, Zirconium 705, Zirconium 705, Zirconium-2, Zirconium-4
Beryllium Copper	Alloy 25 UNSC17200
Aluminium	1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175
Copper Alloys	C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000

Applications Of Fastners

Summary Of Fastener Materials

aterial	Surface treatment	Useful design temperature limit, °F	Ultimate tensile strength at room temperature, ksi	Comments
Carbon steel	Zinc plate	-65 to 250	55 and up	—
Alloy steels	Cadmium plate, nickel plate, zinc plate, or chromium plate	-65 to limiting temperature of plating	Up to 300	Some can be used at 900 °F
A-286 stainless	Passivated per MIL-S-5002	-423 to 1200	Up to 220	—
17-4PH stainless	None	-300 to 600	Up to 220	—
17-4PH stainless	Passivated	-200 to 600	Up to 220	—
300 series stainless	Furnace oxidized	-200 to 600	70 to 140	Oxidizing reduces galling
410, 416, and 430 stainless	Passivated	-250 to 1200	Up to 180	47 ksi at 1200 °F; will corrode slightly
U-212 stainless	Cleaned and passivated per MIL-S-5002	1200	185	140 ksi at 1200 °F
Inconel 718 stainless	Passivated per QQ-P-35 or cadmium plated	-423 to 900 or cadmium plate limit	Up to 220	—
Inconel X-750 stainless	None	-320 to 1200	Up to 180	136 ksi at 1200 °F
Waspalloy stainless	None	-423 to 1600	150	—
Titanium	None	-350 to 500	Up to 160	—

General Design Information Fastner Materials

Bolts can be made from many materials, but most bolts are made of carbon steel, alloy steel, or stainless steel. Stainless steels include both iron- and nickel-based chromium alloys. Titanium and aluminum bolts have limited usage, primarily in the aerospace industry.

Carbon steel is the cheapest and most common bolt material. Most hardware stores sell carbon steel bolts, which are usually zinc plated to resist corrosion. The typical ultimate strength of this bolt material is 55 ksi.

An alloy steel is a high-strength carbon steel that can be heat treated up to 300 ksi. However, it is not corrosion resistant and must therefore have some type of coating to protect it from corrosion. Aerospace alloy steel fasteners are usually cadmium plated for corrosion protection.

Bolts of stainless steel (CRES) are available in a variety of alloys with ultimate strengths from 70 to 220 ksi. The major advantage of using CRES is that it normally requires no protective coating and has a wider service temperature range than plain carbon or alloy steels.

A partial listing of bolt materials is given in table I. The following precautions are to be noted:

The bolt plating material is usually the limiting factor on maximum service temperature.
Carbon steel and alloy steel are unsatisfactory (become brittle) at temperatures below -65 °F.
Hydrogen embrittlement is a problem with most common methods of plating, unless special procedures are used. (This subject is covered more fully in the corrosion section.)
Series 400 CRES contains only 12 percent chromium and thus will corrode in some environments.
The contact of dissimilar materials can create galvanic corrosion, which can become a major problem. (Galvanic corrosion is covered in a subsequent section of this manual.)
